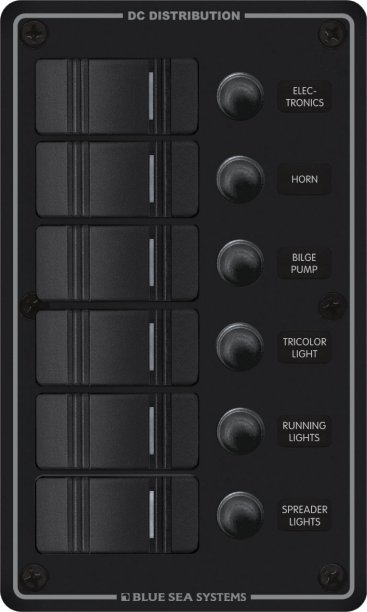

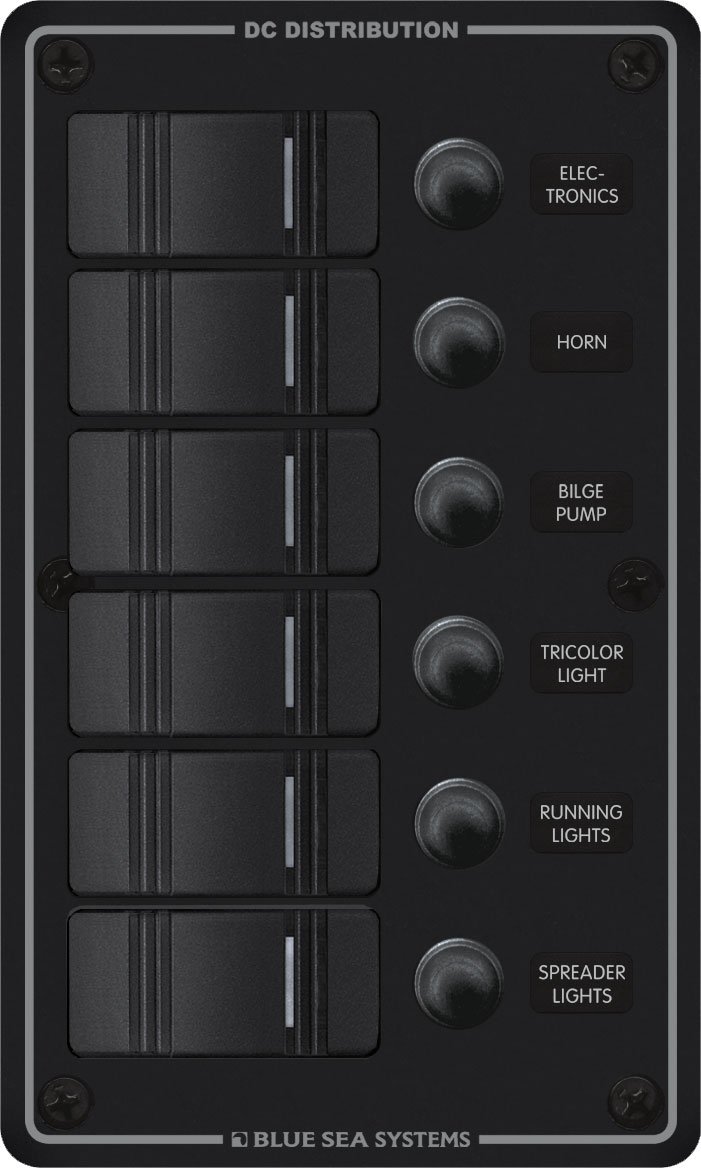

Blue Sea 6-Position IP66 Waterproof Vertical Panel Black

Overview

• Designed for flybridge and open cockpit applications
• Panel front is rated IP66—Protected against powerful water jets
• Ignition protected—safe for installation aboard gasoline powered boats
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switch
• Watertight mounting gasket
• Push Button Reset-Only circuit breakers with waterproof boots

Specifications
Weatherproof	Water Resistant
Positions	6
Nominal Voltage	12V DC 24V DC
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC 15A @ 24V DC
Height	7.50in (190.5 mm)
Width	4.50in (114.3 mm)
Depth	3.25in (82.55 mm)
Weight	1.35lb (0.61 kg)
