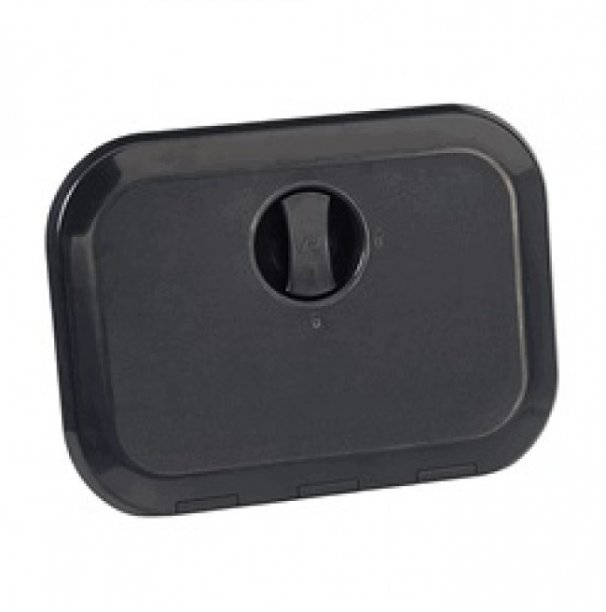

Take apart hatch, ideal when height does not allow full verticial opening: Just unclip the hunge, slide and pull the hatch horizontally to obraun a full opening of the hatch.
With two sets of hinges supplied as a standard feature, the Plastimo hatch offers two mounting alternatives according to the installation environment :
Enough height available : hatch opening through 180°
Limited height, not enough to open up : hatch can slide horizontally and be removed.
Easy maintenance : should the hatch be replaced, all you need to do is unclip the hatch. No need to remove or replace the deck frame (saving lots of labour time and watertightness operations).
Overall Dimension: 270x374mm
Cut Out Dimensions: 187x290mm
Features
Impervious to UV
Excellent mechanical resistance, enhanced by the honeycomb structure inside the hatch
Walkable : resists 130 kg load with no distortion at all.
Opening through 180°
Deck or wall mount
EPDM rubber gasket for perfect watertightness
Supplied with a set of 2 hinges allowing different installation alternatives : classic articulated hinge opening through 180°, or specific hinge making the hatch removable
...
